ihelp – ERT-36
For ERT-36 recumbent trike assembly instructions, please view the video
1/ Remove the cover off this part:
![](https://etrikers.com/wp-content/uploads/2024/03/ert1-1.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert2.jpg)
2/ Install the wheels on the frame.
![](https://etrikers.com/wp-content/uploads/2024/03/ert3.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert4.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert5.jpg)
3/ Install the front part. First you have to remove the screw.
![](https://etrikers.com/wp-content/uploads/2024/03/ert6.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert7.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert8.jpg)
4/ Place this part into the frame of the trike. This is where you can adjust the trike to your hight.
![](https://etrikers.com/wp-content/uploads/2024/03/ert9.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert10.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert11.jpg)
5/ Install the padals – make sure to check the correct side (left to the left, righ to the right)
![](https://etrikers.com/wp-content/uploads/2024/03/ert12.jpg)
6/ Install the BIG Y – roof section- with gentle force by hand. This is the frame for the roof.
![](https://etrikers.com/wp-content/uploads/2024/03/ert13.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert14.jpg)
7/ Install the handlebar.
![](https://etrikers.com/wp-content/uploads/2024/03/ert15.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert16.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert17.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert18.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert19.jpg)
8/ Attach the short bars to the seat
![](https://etrikers.com/wp-content/uploads/2024/03/ert20.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert21.jpg)
9/ Install the headrest onto the seat.
![](https://etrikers.com/wp-content/uploads/2024/03/ert22.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert23.jpg)

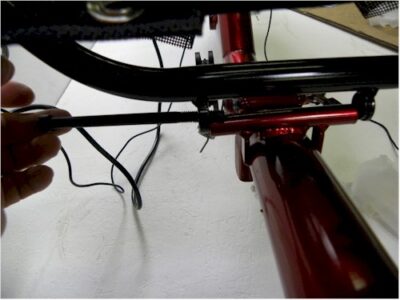

10/ Install the seat on the bike.
![](https://etrikers.com/wp-content/uploads/2024/03/ert24-1.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert25.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert26.jpg)
11/ Peel the protective film off the battery pack holder and put the black cover on
![](https://etrikers.com/wp-content/uploads/2024/03/ert27.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert28.jpg)
12/ Install the derailleur. Insert the screw into this part to attach the derailleur to the frame.
![](https://etrikers.com/wp-content/uploads/2024/03/ert29.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert30.jpg)
13/ Install the rear reflector.
![](https://etrikers.com/wp-content/uploads/2024/03/ert31.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert32.jpg)
14/ Before you put the fenders on, install the parts:
![](https://etrikers.com/wp-content/uploads/2024/03/ert33.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert34.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert35.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert36.jpg)
15/
![](https://etrikers.com/wp-content/uploads/2024/03/ert37.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert38.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert39.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert40.jpg)

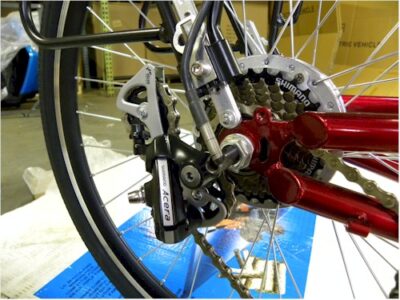

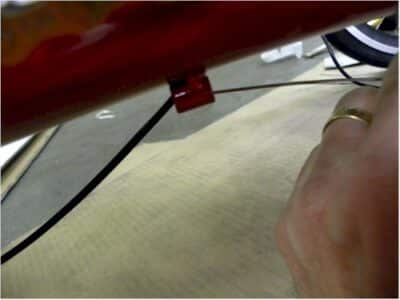

16/ Pull together
![](https://etrikers.com/wp-content/uploads/2024/03/ert41.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert42.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert43.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert44.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert45.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert46.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert47.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert48.jpg)
17/ Install the front speed cable
![](https://etrikers.com/wp-content/uploads/2024/03/ert49.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert50.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert51.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert52.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert53.jpg)
18/ Brake installation
![](https://etrikers.com/wp-content/uploads/2024/03/ert54.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert55.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert56.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert57.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert58.jpg)
19/ Install the chain protector BEFORE you connect the chain!
![](https://etrikers.com/wp-content/uploads/2024/03/ert59.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert60.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert61.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert62.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert63.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert64.jpg)
20/ Use the cable ties to secure all the cables to the frame.
![](https://etrikers.com/wp-content/uploads/2024/03/ert65-1.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert66.jpg)
21/ Attacth this part.
![](https://etrikers.com/wp-content/uploads/2024/03/ert67.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert68.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert69.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert70.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert71.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert72.jpg)
22/ Install the flag holder
![](https://etrikers.com/wp-content/uploads/2024/03/ert73.jpg)
23/ Install the mirrors
![](https://etrikers.com/wp-content/uploads/2024/03/ert74.jpg)
![](https://etrikers.com/wp-content/uploads/2024/03/ert75.jpg)
